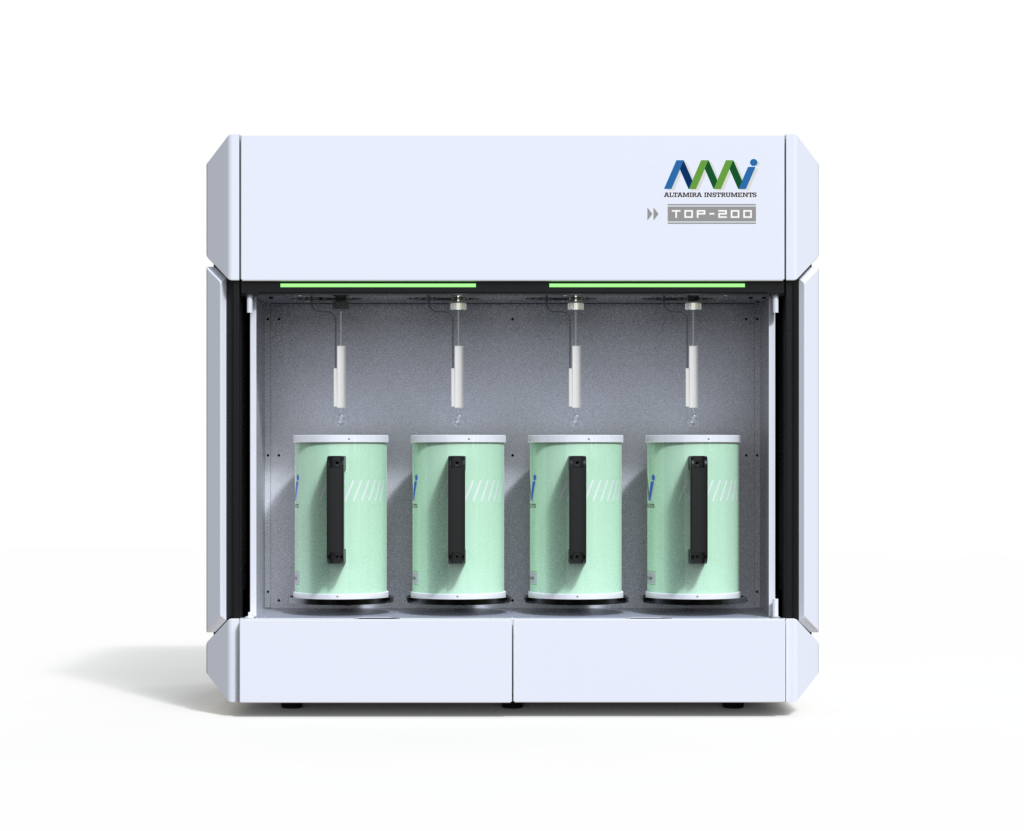

TOP-200

AMI has re-incorporated many of the technical advantages of the adsorption field and launch the TOP-200 Extensible multi-stations gas adsorption analyzer. TOP-200 gas adsorption analyzer is compact and powerful, and can accurately test micropores, mesopores and surface area to study the adsorption behavior of different adsorbates at different temperatures. TOP series of instruments have a completely new internal structure, enabling the full independence of different analysis stations. At the same time, four analysis stations can complete four different gas adsorption experiments. The four stations can start the experiment separately and complete the experiment independently without waiting for each other.

Product Category: Surface Area

Industry: Particle and surface science

Supplier: AMI

Description

Hardware and Operation

Specific surface area: >0.0001m²/g

Pore size: 0.35nm - 500nm

Power: 110~220V, 50/60Hz

Vacuum System

Minimum relative pressure: 10^-8, some samples are reached 10^-9.

Manifold: Multi-optimized design to provide the most suitable dead volume

Flexible vacuum configuration:

Mechanical oil pump is standard. It can be upgraded to an independent turbomolecular pump for each analysis ports.

TECHNIQUES

The analysis results for the top and quick series are included:

Isotherm curve
BET (Brunauer, Emmett, and Teller) surface area
Langmuir surface area
t-Plot
Alpha-s method
The BJH (Barrett, Joyner, and Halenda) method
Dollimore-heal adsorption and desorption curve
Horvath-Kawazoe (H-K)
The MP method
DFT
NLDFT
Dubinin-Astakhov (D-A)
Dubinin-Radushkevich (D-R)
Summary reports
Custom reports

Calculation model for heat of adsorption

CAPABILITIES

Physisorption
Gas adsorption
Gas sorption
Nitrogen sorption
Surface characterization
Pore analysis
Pore size
Pore size distribution
BET surface area

Specifications

	TOP200
Analysis port(s)	2	4
p0 Port(s)	2	4
Number of micropore analysis stations	UP TO TWO	UP TO FOUR
Adsorbates	N2 , Ar, Kr, H2 , O2 , CO2 , CO, NH3 , CH4 , etc.
Surface Area Range	0.0001 m2/g to unknown upper limit; Measurement accuracy (standard sample) ≤ ± 1.0 %
Pore Size Range	0.35 nm – 500 nm(Options) Repeatability: ≤ 0.2 nm in mesopore range and ≤ 0.02 nm in micropore range
Minimum Pore Volume	0.0001 cm3/g
Pressure Sensors (Individual sensor systems for each analysis port can be selected)	1000 Torr, 10 Torr(Options) and 1 Torr(Options) or 0.1 Torr (Options), one extra 1000 Torr for p0 determination
Pressure Sensor Accuracy	± 0.15 % (Full Scale)
Degassing Stations	2 insitu		4 insitu
Degassing Temperature	Room temperature to 400 °C (optional 500 °C), accuracy 1 °C
Vacuum System	Standard mechanical oil pump (ultimate vacuum 103 Pa), optional turbo molecular pump(ultimate vacuum 108 Pa)
Independent vacuum system for each analysis port	√ (Options)		√ (Options)
Dimensions
Temperature Requirements of Environment	15 – 40 °C
Humidity Requirements of Environment	10 % – 90 %
Power Requirements	AC 220 V ± 20 V, 50/60 Hz, maximum power 300 W, current 5 A
Steam absorption	√		×
Independent Intake Gas System for Each Analysis port	√ (Options)		√ (Options)
