DTA – Differential Thermal Analyzer
DTA measures the temperature difference between a sample and an inert reference as a function of time or temperature. This method is similar to DSC but does not quantify energy measurements, it is also used for high temperature work. Glass transitions, phase changes, and melting points can be measured.
Read MorePDSC – Pressure Differential Scanning Calorimeter
PDSC measures the effects of pressure. Controls pressure to study and understand the reason for differences. Equipped with heat flux plate designed to measure small energy changes.
Read MoreTMA – Thermomechanical Analyzer
Accurately measures glass transition temperature, stress relief points, and dimensional changes in materials. Broad temperature range: ambient to 800°C (Optional –90°C to 800°C with RCS system). High-sensitivity LVDT sensor detects minute dimensional changes with exceptional precision. Rugged design optimized for small components and materials with low expansion rates (e.g., cir

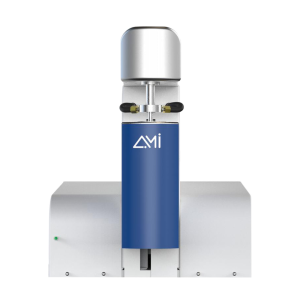

Read MoreTGA – Thermogravimetric Analyzer
Proprietary, self-developed hang-down microbalance with 0.1 μg resolution and high stability—no buoyancy correction required. Temperature range options: ambient to 1000°C / 1200°C / 1500°C. Insulated balance housing minimizes thermal drift and ensures accurate mass measurements. Combines high sensitivity, low drift design, and robust thermal insulation for exceptional long-term precision. Seamlessly integrates with mass spectrometry (MS)…
Read MoreSTA – Simultaneous Thermal Analyzer
Simultaneous measurement of TGA and DSC (DTA) for comprehensive thermal analysis. Optimized for evolved gas analysis with high-resolution detection of micro-scale mass and heat changes. Proprietary hang-down balance with thermal insulation and low drift—accuracy without buoyancy correction. Micro furnace design significantly reduces gas buoyancy and enhances baseline stability.

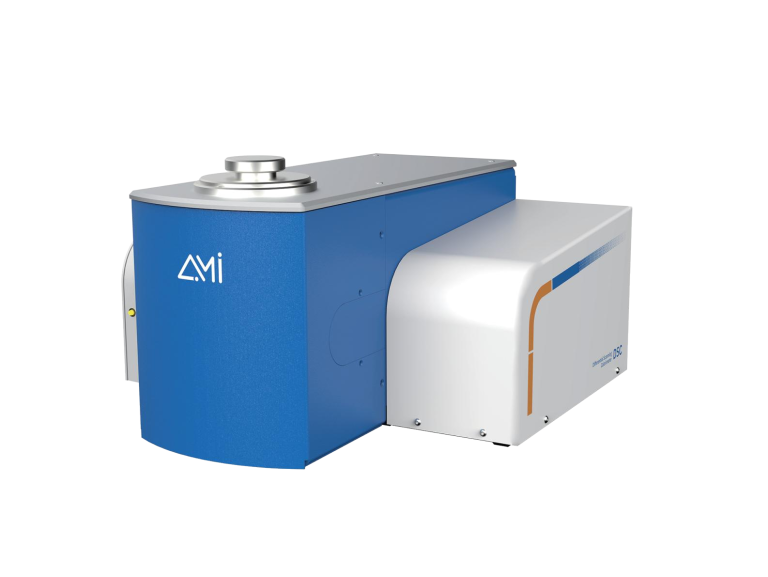

Read MoreDSC – Differential Scanning Calorimeter
Multiple heat flow sensor options: base, high-sensitivity, corrosion-resistant, and energetic sample-compatible. Flexible cooling systems: water, mechanical, or liquid nitrogen (LN2). Surrounding dual-PID temperature control delivers accurate thermal curves during both heating and cooling. Ultra-light mineral furnace design reduces heat loss and enhances thermal uniformity and energy efficiency. Optional high-pressure DSC model supports measurements up to…
Read More
