CT-4000 Series
Product Category: Battery Testing
Industry: Batteries
Supplier: Neware
Description
Please see the Specifications and Model Comparison for different systems
Flawless in milliseconds, precision beyond limits.
Unit modularity, powerful performance.
Current Accuracy ±0.02% F.S.
Stable performance parameters to ensure accurate and reliable test data. At the same time, the product adopts modular design with each unit having 8 channels, which can be independently data acquisition and programmed with the maximum number of editable lines supporting 254 lines.
4-range switching, precision defined.
Current ranges from 0.5μA ~ 0.1mA, 0.1mA ~ 1mA, 1mA ~ 10mA , 10mA ~100mA can be selected to realize the controllable accuracy of small current in small range.
![[b]4-range switching, precision defined.CT-4008Q-5V100mA-124](https://www.neware-usa.com/uploadfile/2023/0621/51ca0c9b74c29e3.webp)
Compact in size, big on functionality.

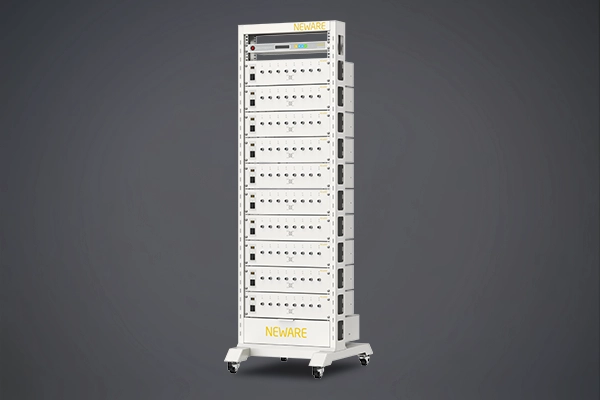

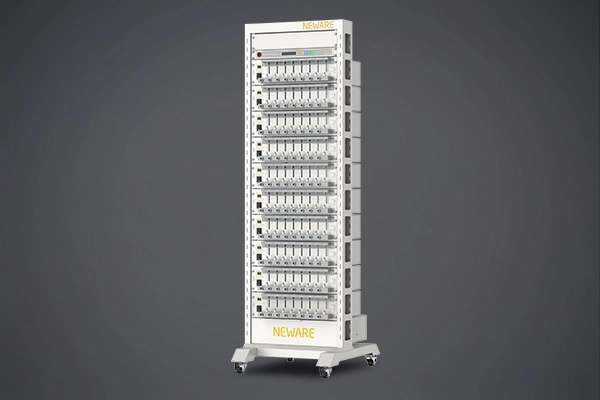

With a height of 1U*, thin and compact body, it occupies minimal space while offering numerous testing capabilities. Multiple units can be assembled onto a gantry, allowing easy storage and fulfilling the requirements for testing multiple batteries.
*1U=1.75 inches =4.445 centimeters
Multiple testing modes.One equipment, unlimited capabilities.
Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.
Powerful programmability. Meet diverse testing needs.
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
Perpetual dedication to safety protection.
● Discharge Data Protection
● Offline Testing Function
● Voltage Upper Limit Setting
● Voltage Lower Limit Setting
● Current Upper Limit Setting
● Current Lower Limit Setting
● Capacity Upper Limit Setting
● Delay Time Setting
![[w]Perpetual dedication to safety protection for CT-4008Q-5V100mA-124](https://www.neware-usa.com/uploadfile/2023/0526/714487210a124c7.webp)
Extensive peripheral devices. Create a multi-dimensional testing environment.
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
![[w]Extensive peripheral devices. Create a multi-dimensional testing environment.CT-4008Q-5V100mA-124](https://www.neware-usa.com/uploadfile/2023/0525/b2bc58de1f093dc.webp)
Technical Specifications
| Equipment name | CT-4008Q-100mA-124 |
|---|---|
| Voltage | |
| CV output range | 10mV~5V |
| Min discharge voltage | -5V |
| Accuracy | ± 0.01% of F.S. |
| Stability | ± 0.02% of F.S. |
| Current | |
| Output range/channel | Range1: 0. 2 μA-0.1mA Range2: 0.1mA-1mA Range3: 1mA-10mA Range4: 10mA-100mA |
| Accuracy | ± 0.01% of F.S. |
| CV cut-off current | Range1：0.1μA Range2：1μA Range3：1μA Range4：0.1mA |
| Stability | ± 0.02% of F.S. |
| Power | |
| Output power/channel | 0.5W |
| Stability | ± 0.1% of F.S. |
| Time | |
| Current response time | Max rising time:1.5ms |
| Working step time | ≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms) |
Want to explore further?
Download our product technical specifications for more.
· Instruments
· Auxilaries and Optional Accessories
Specifications
| Voltage & Current | Range / Current | |||
| Range 1 | Range 2 | Range 3 | Range 4 | |
| 5V100mA | 0.2μA ~ 0.1mA | 0.1mA ~ 1mA | 1mA ~ 10mA | 10mA ~ 100mA |
| Voltage & Current | Range / Current | |||
| Range 1 | Range 2 | Range 3 | Range 4 | |
| 5V6A | 0.5mA ~ 100mA | 100mA ~ 500mA | 500mA ~ 3A | 3A ~ 6A |
| Voltage & Current | Range / Current | |||
| Range 1 | Range 2 | Range 3 | Range 4 | |
| 5V6A | 0.5mA ~ 100mA | 100mA ~ 500mA | 500mA ~ 3A | 3A ~ 6A |
| Voltage & Current | Range / Current | |||
| Range 1 | Range 2 | Range 3 | Range 4 | |
| 5V100mA | 0.5mA ~ 100mA | 100mA ~ 500mA | 500mA ~ 6A | 6A ~ 12A |
| Voltage & Current | Range / Current | |||
| Range 1 | Range 2 | Range 3 | Range 4 | |
| 5V100mA | 0.5mA ~ 100mA | 100mA ~ 500mA | 500mA ~ 6A | 6A ~ 12A |
